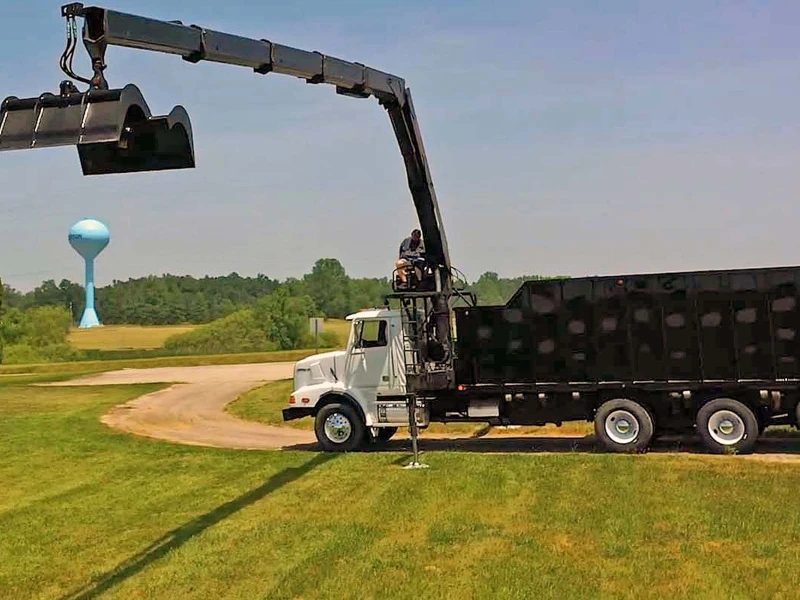

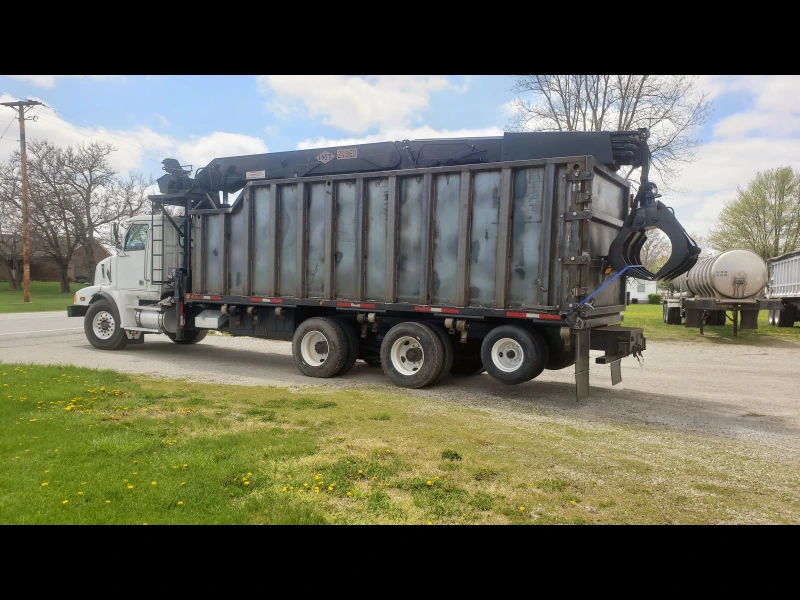

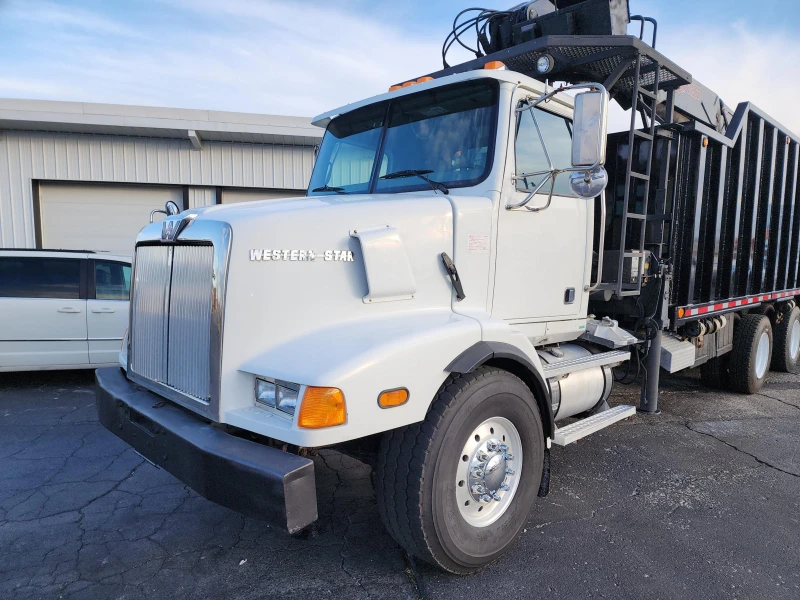

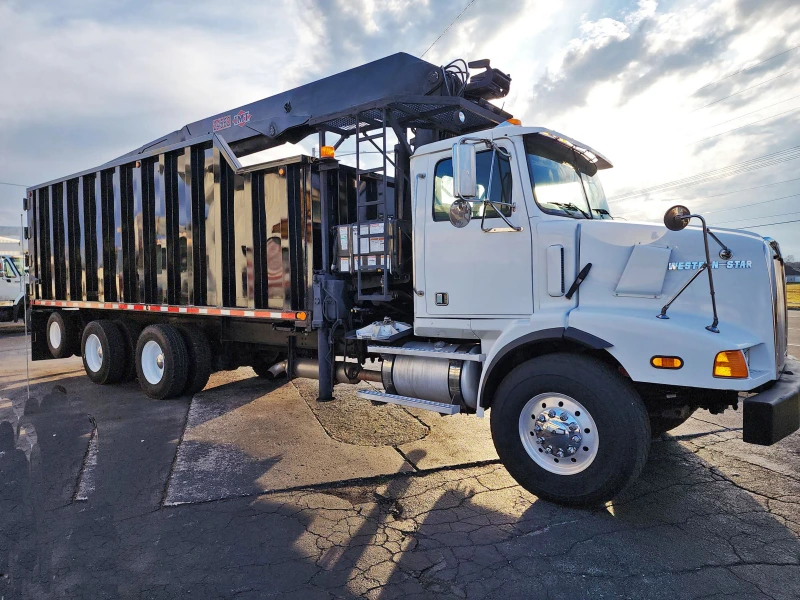

2003 WESTERN STAR 4900SA TRI-AXLE GRAPPLE TRUCK, CRANE TRUCK, KNUCKLEBOOMS, HAUL TRUCK.
Quick Inquiry
Key Features and Details
- Stock Number3-KL05344
- CategoryGrapple Truck
- ConditionUsed
- Mileage187,998 Mi
- Cab TypeSTANDARD CAB
- Fuel TypeDiesel/Biodiesel
- Drive Train—
- VIN2WLHALAS83KL05344
Dealer Comments
LISTING STATUS NOTICE (IMPORTANT)
**THIS TRUCK HAS BEEN SOLD —
**HOWEVER, WE CAN SOURCE, CUSTOM-BUILD, AND UPFIT AN APPROPRIATELY CONFIGURED
TRUCK FOR A QUALIFIED BUYER.

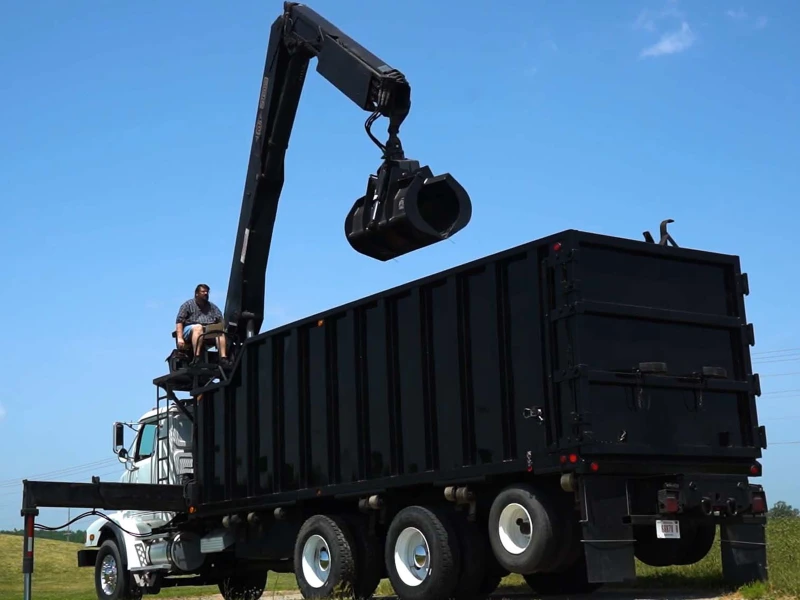

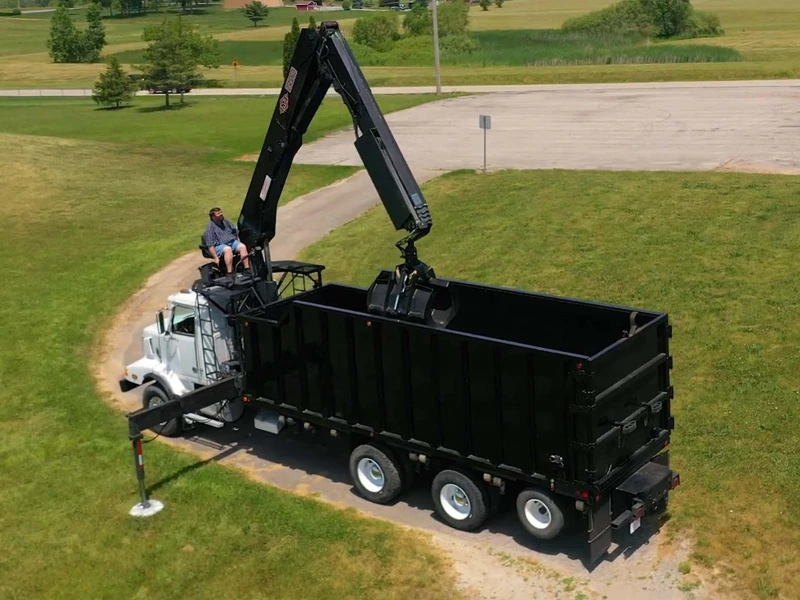

WESTERN STAR 4900SA TRI-AXLE - GRAPPLE TRUCK, CRANE TRUCK, KNUCKLEBOOMS, HAUL TRUCK.
CLEAN-UP & HAUL-AWAY:
Demolition Rubble, Construction Scrap, Storm Debris, Trash, Disaster Waste.
Tree Debris: Logs, Limbs, Branches, Twigs, Brush, Residual Wood.
RECYCLING & SORTING:
• lift, • lower, • rotate, • sort, • place, all types of materials.

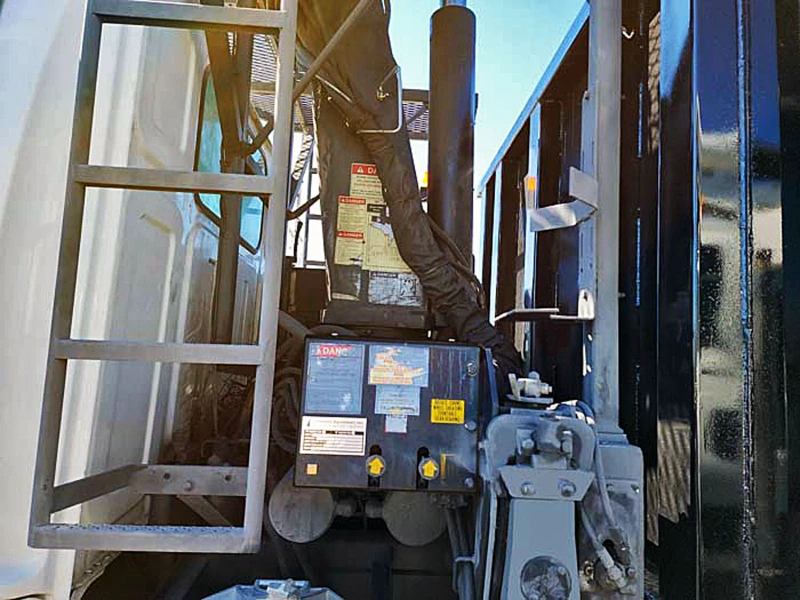

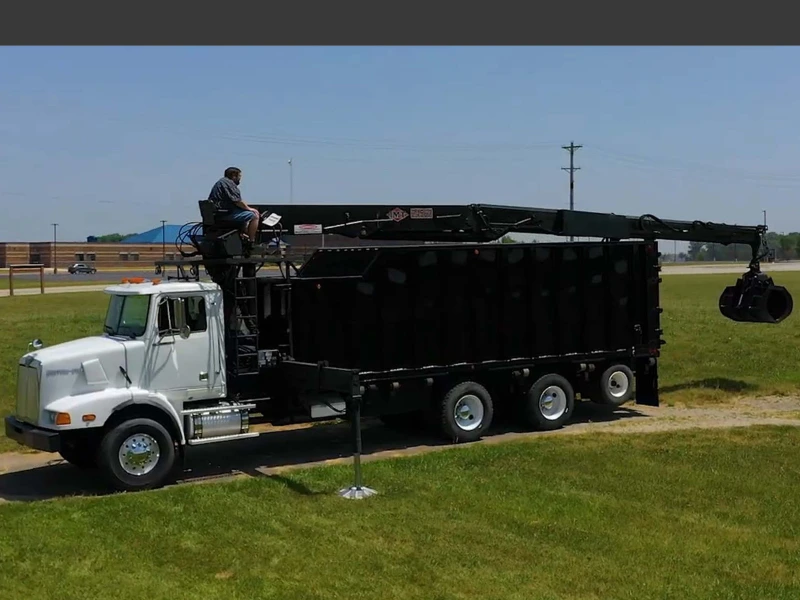

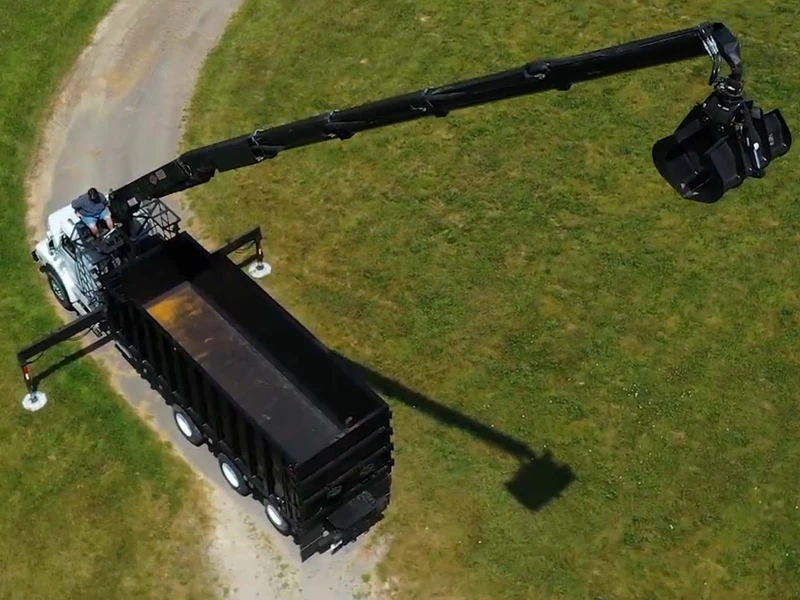

CRANE IMT 28562: **75'+ Material Handling Crane w/5,700 lb. Capacity at Height.G

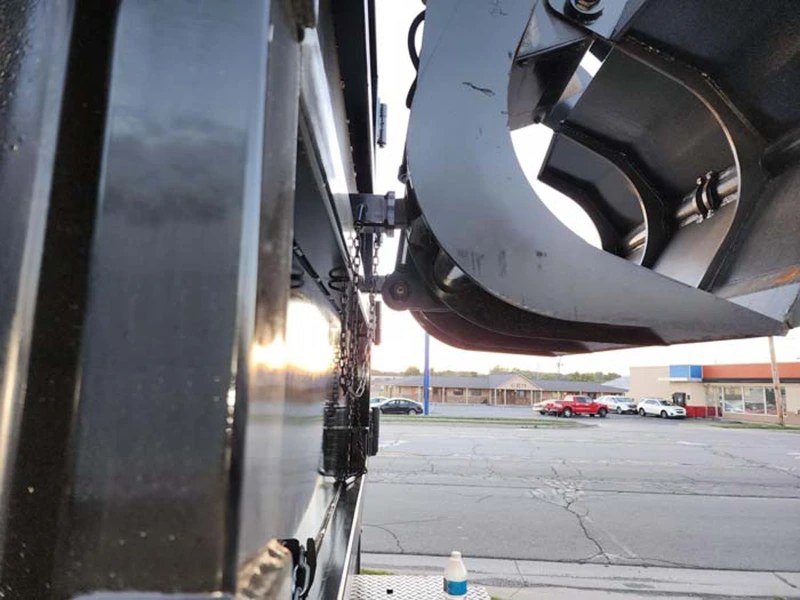

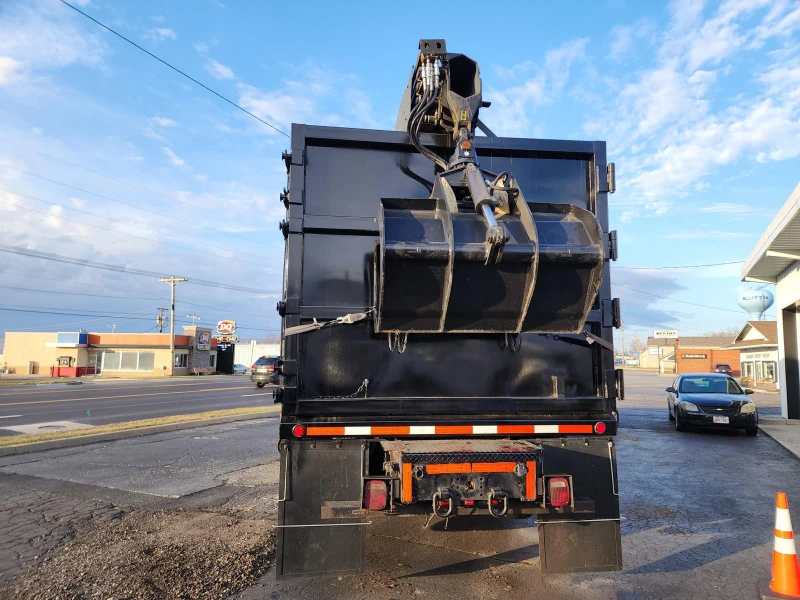

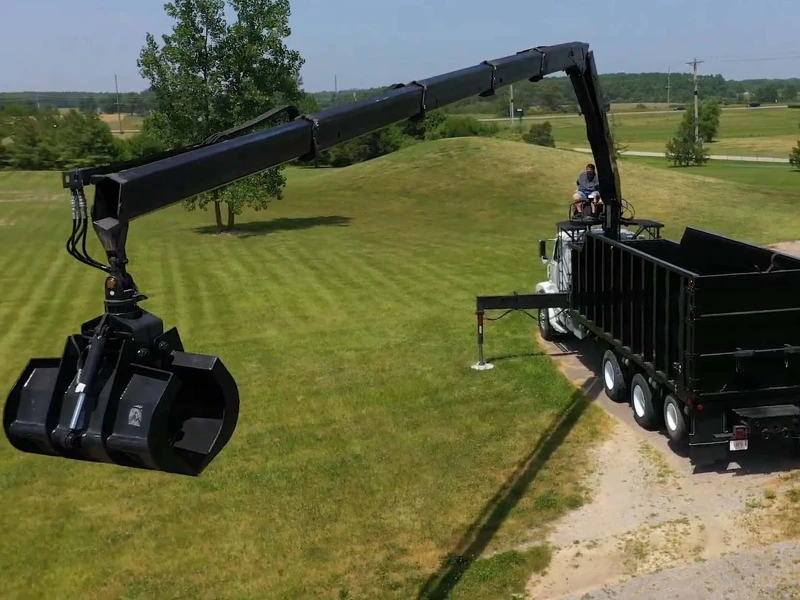

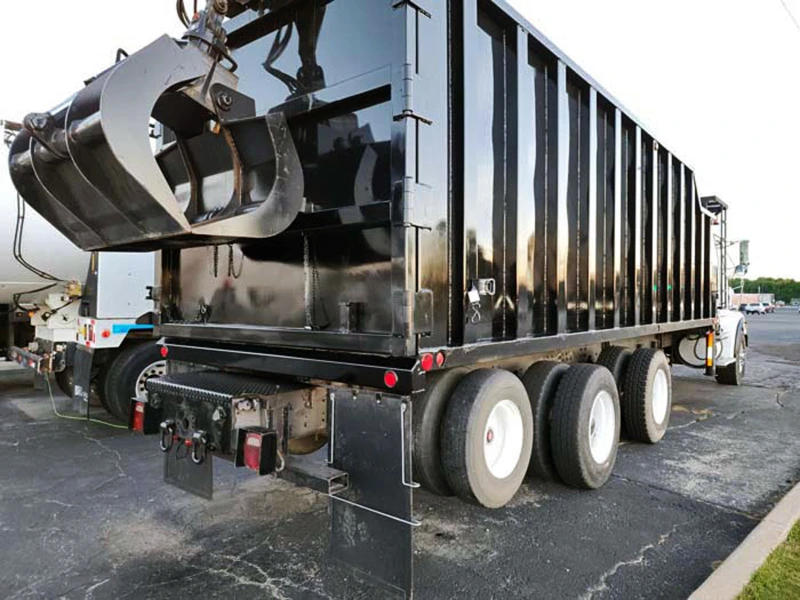

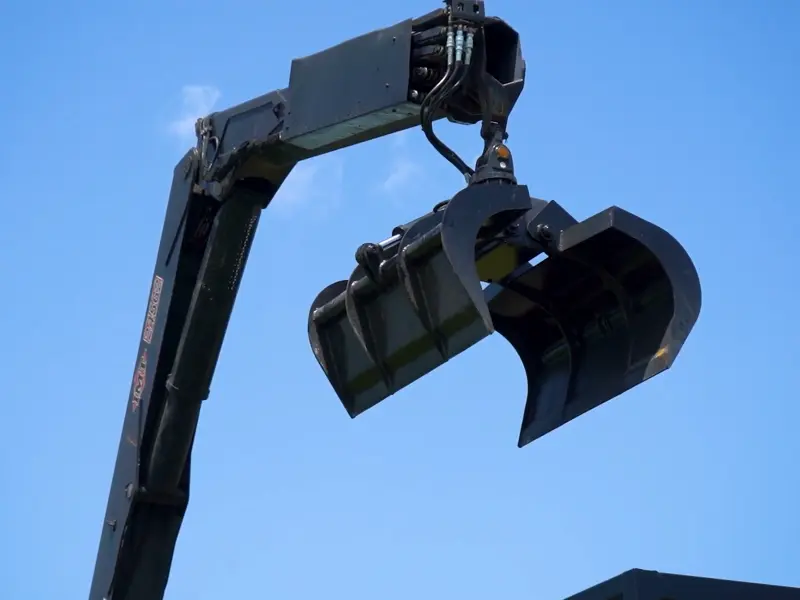

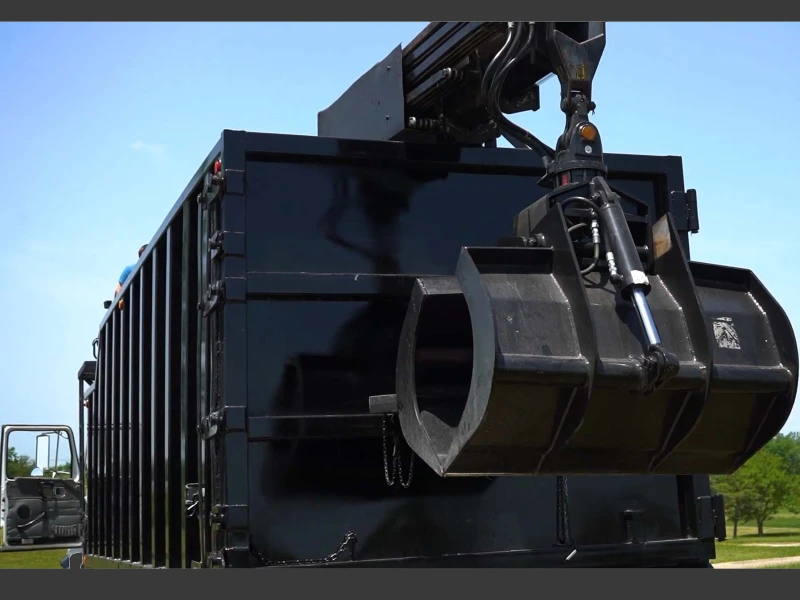

RAPPLE NEW SERCO: Debris Collection Grapple Loader Attachment.

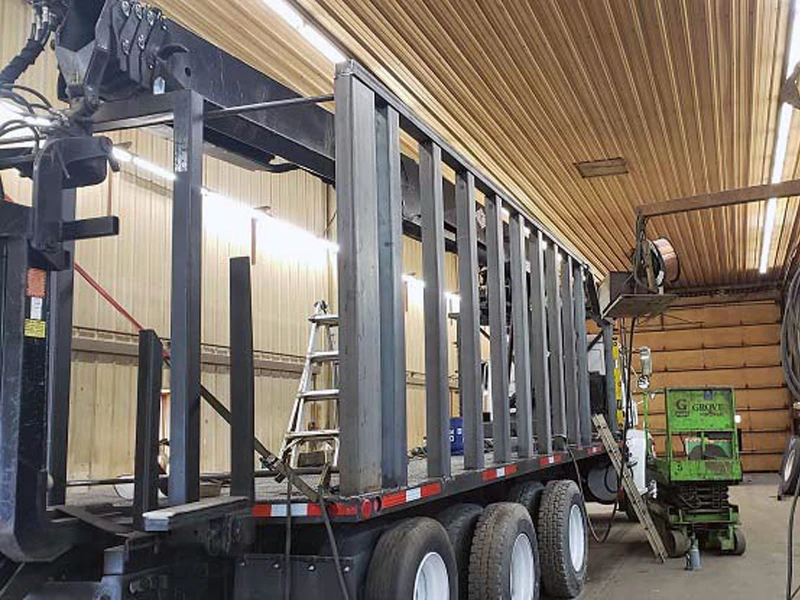

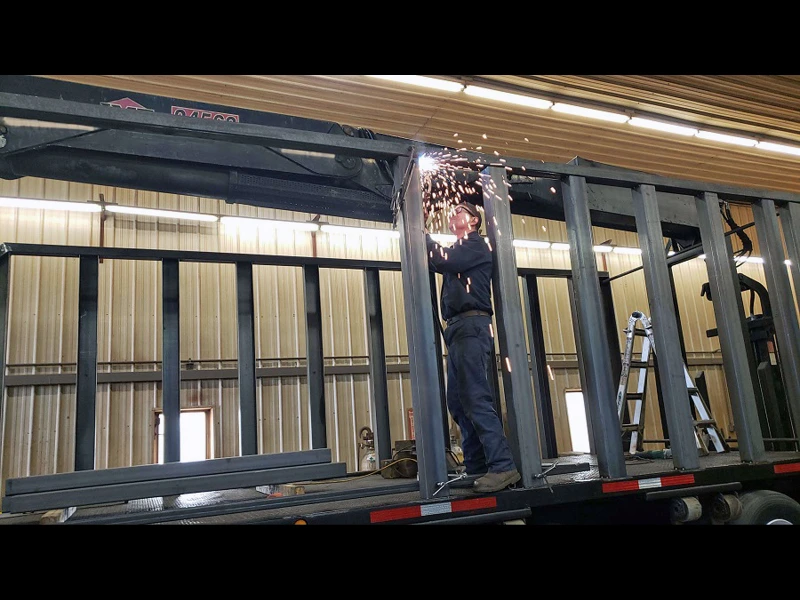

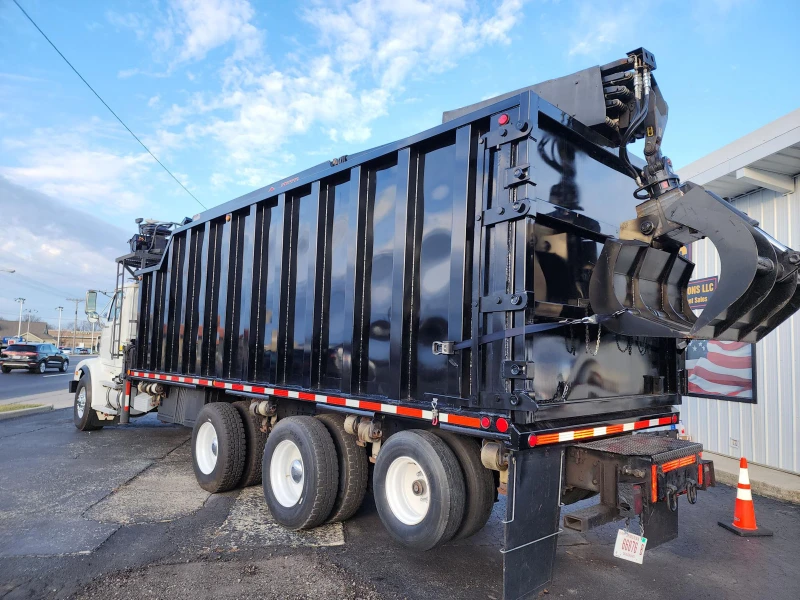

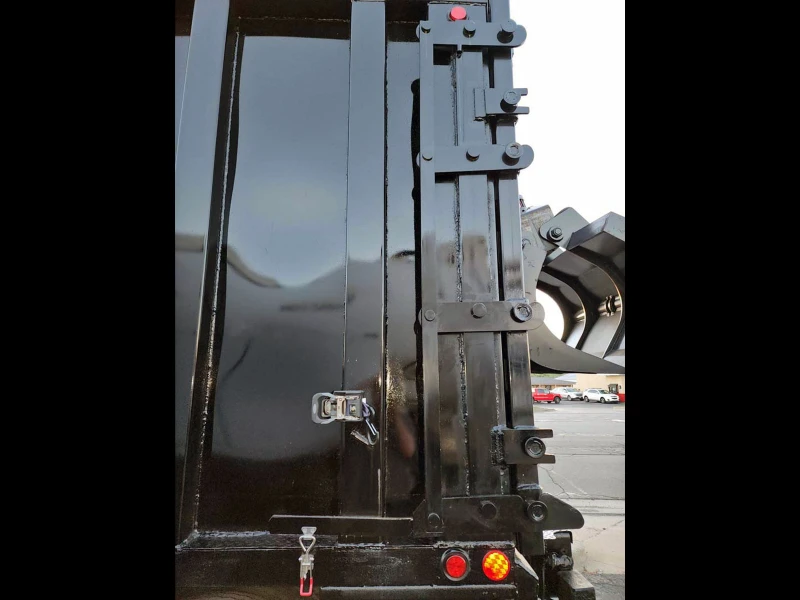

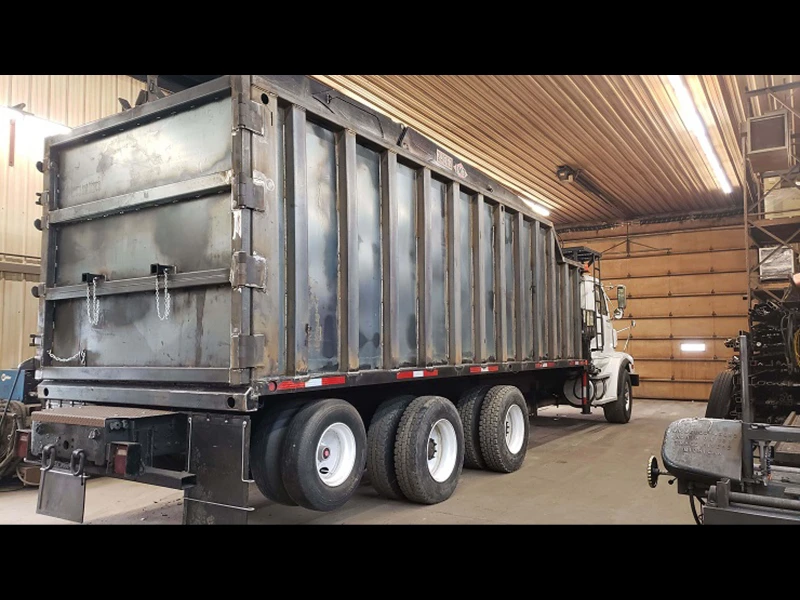

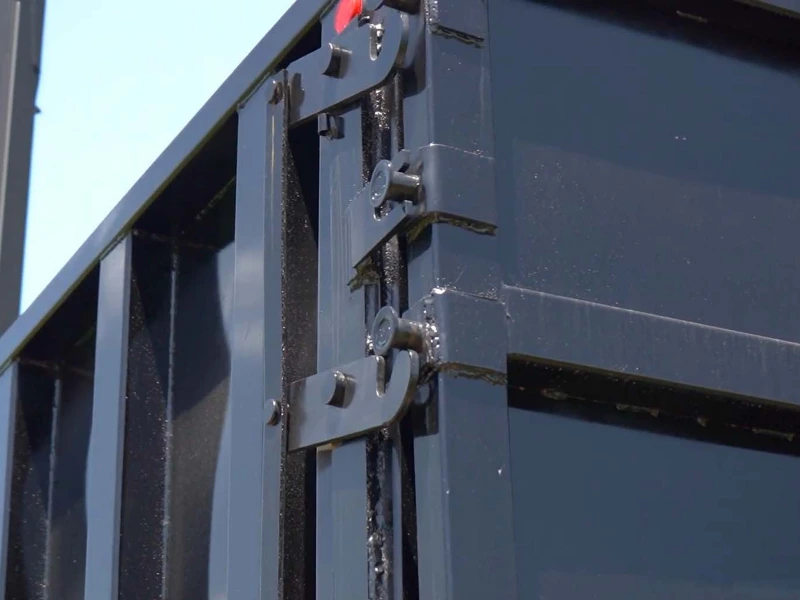

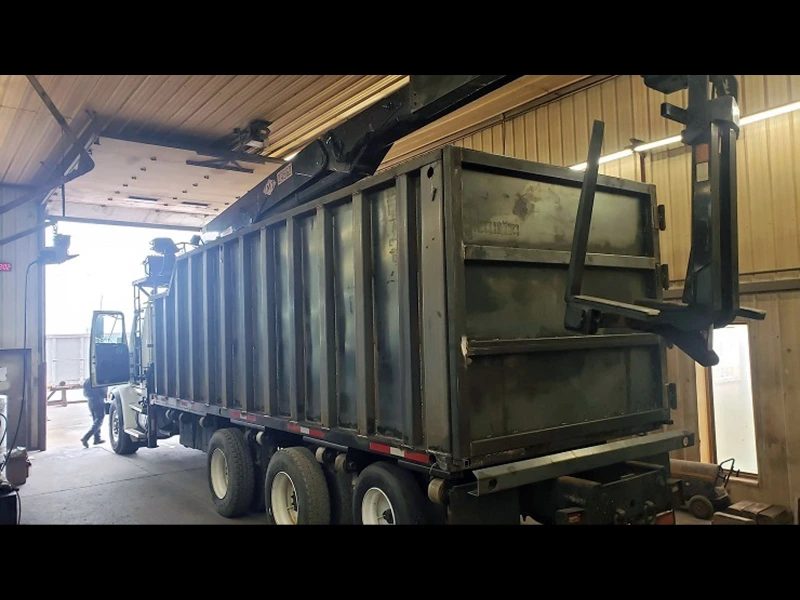

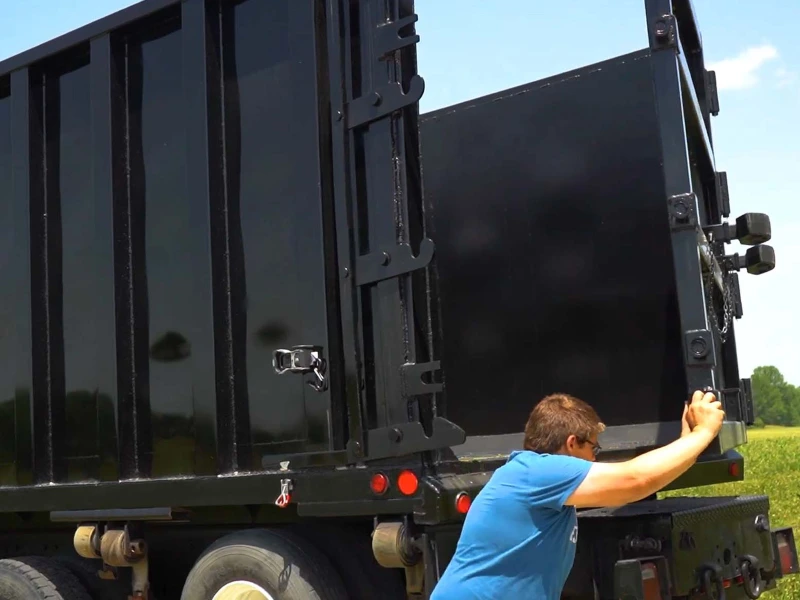

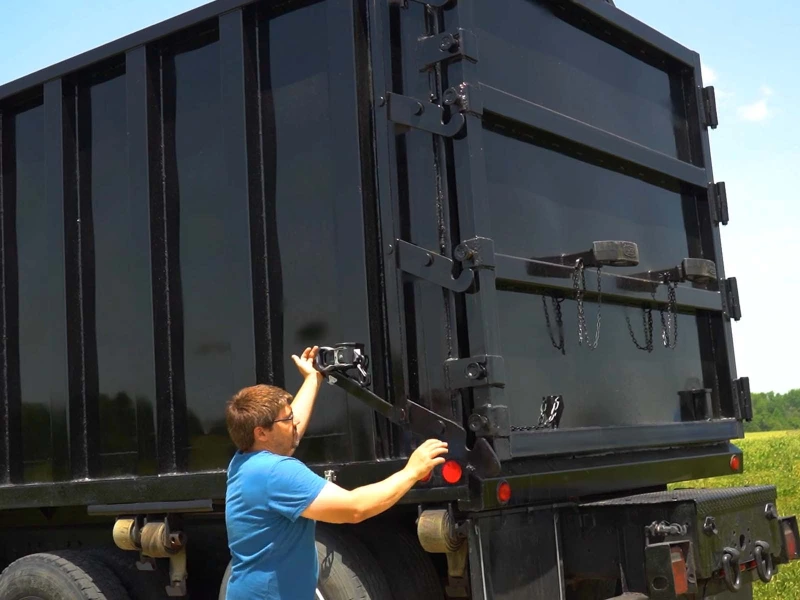

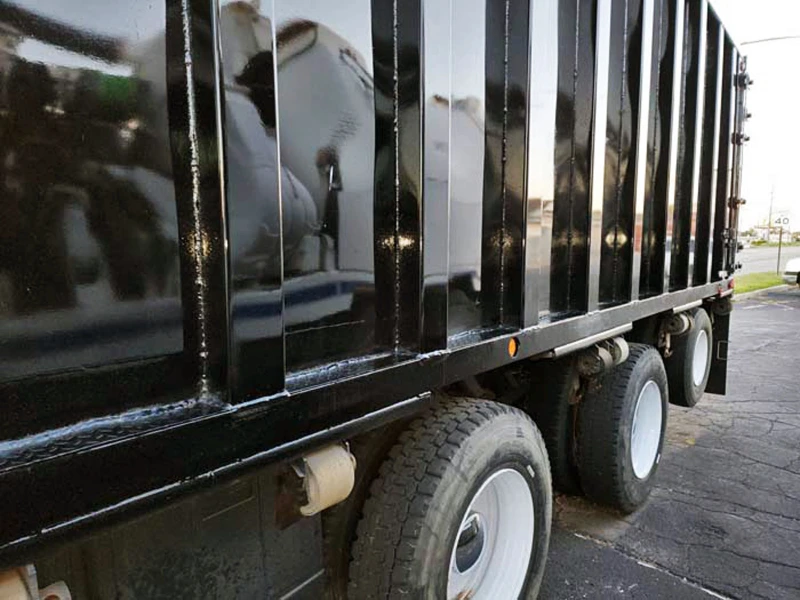

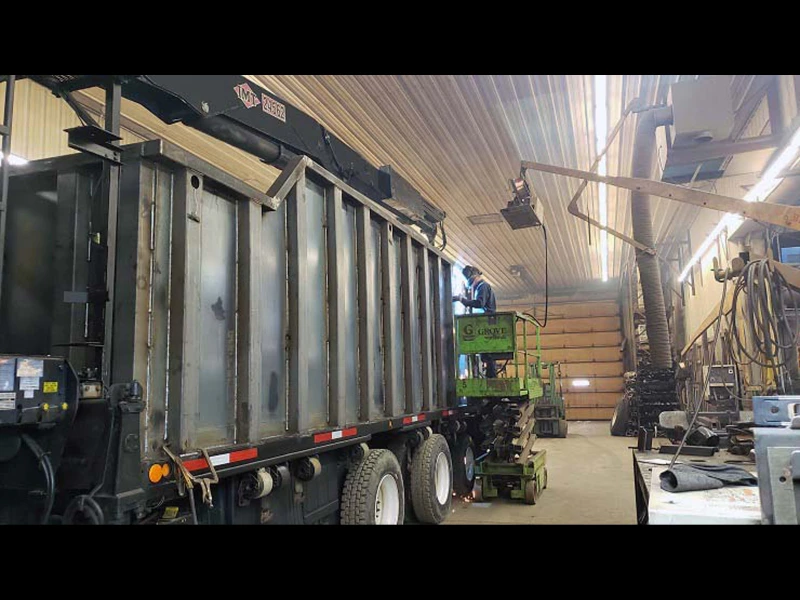

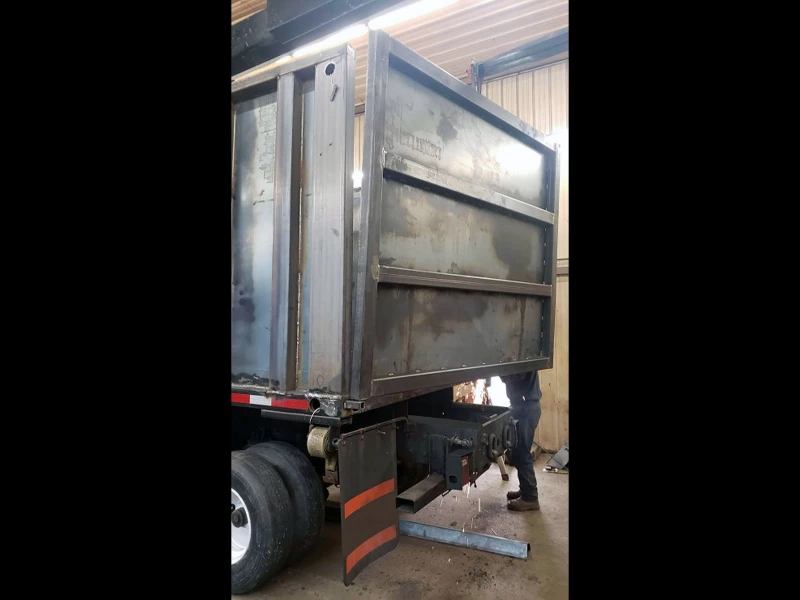

HAUL BODY NEW TCS: 25' Debris Haul Body - Approx. 60 Cu. Yd. Capacity.
IMPORTANT CRANE SPECS: Model 28562
•Crane Rating: 161,490 ft.-lb.
•Max Lifting Height: **75' 6"
•Max Lift Cap. at 75' 6" Vertical: 4,000 lb.
•Max Lift Capacity at Height: 5,700 lb.
•Max Horizontal Out-Reach: Approximate 64'±
•Max Lift Cap. 64'± Horizontal: 2,400 lb.
•Crane Storage Height: 13' 5"
•Rotational Torque: 35,008 ft.-lb.
•Rotation: 420°
•Oil Reservoir Capacity: 55 gal.

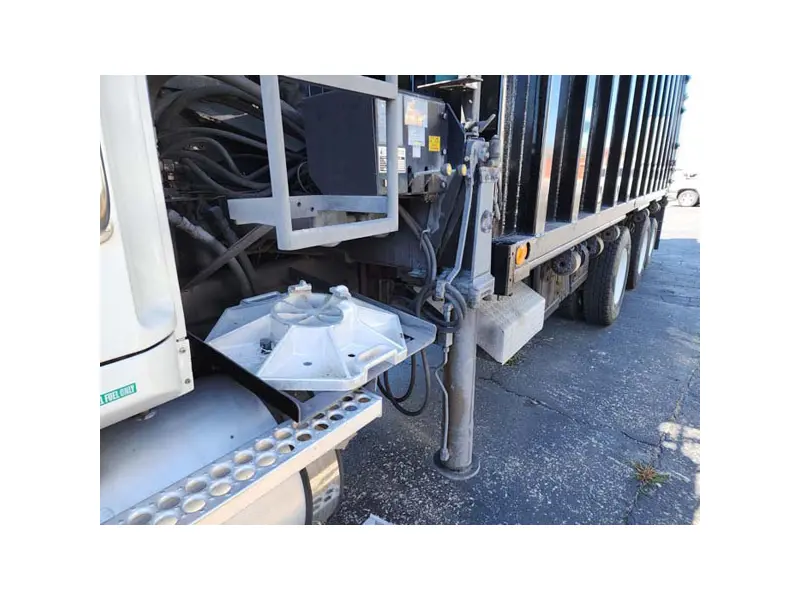

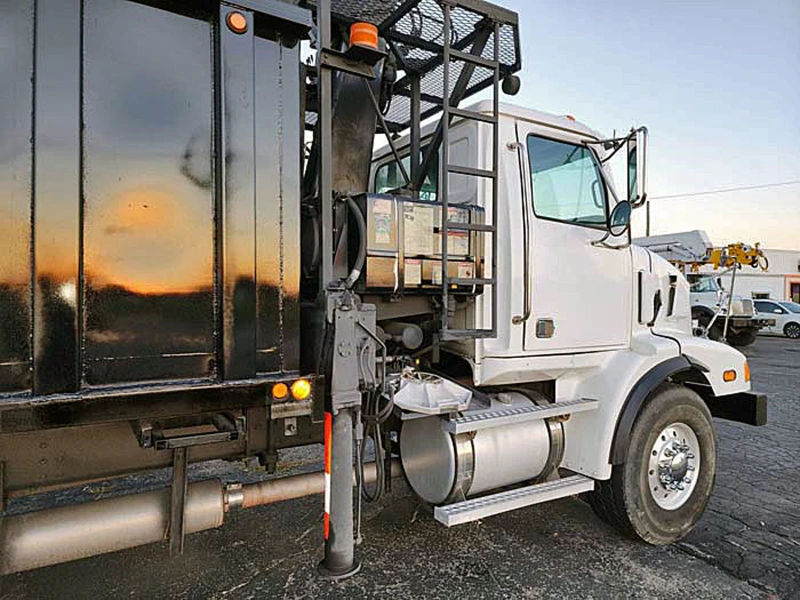

•Stabilizer Extension Span: 22' (hydraulic out and hydraulic down)
•Wireless Radio Remote Control
•Upper Crane Control Station

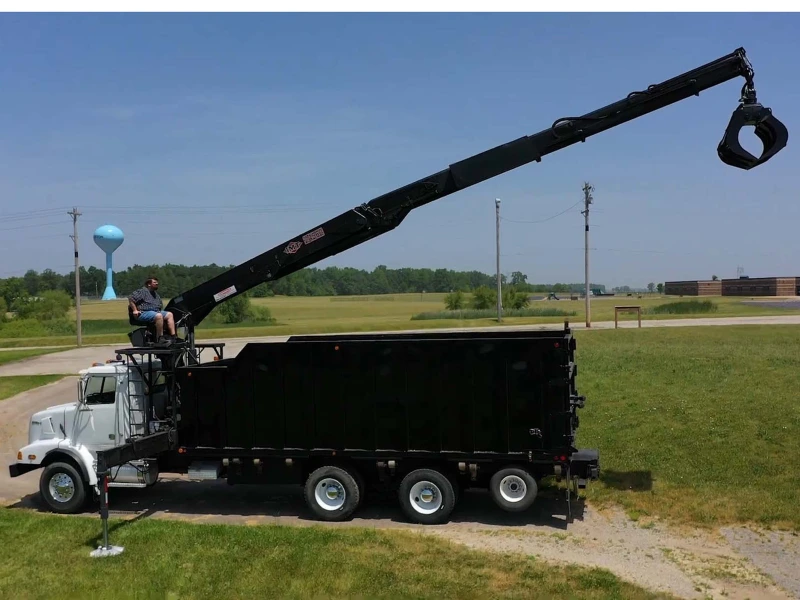

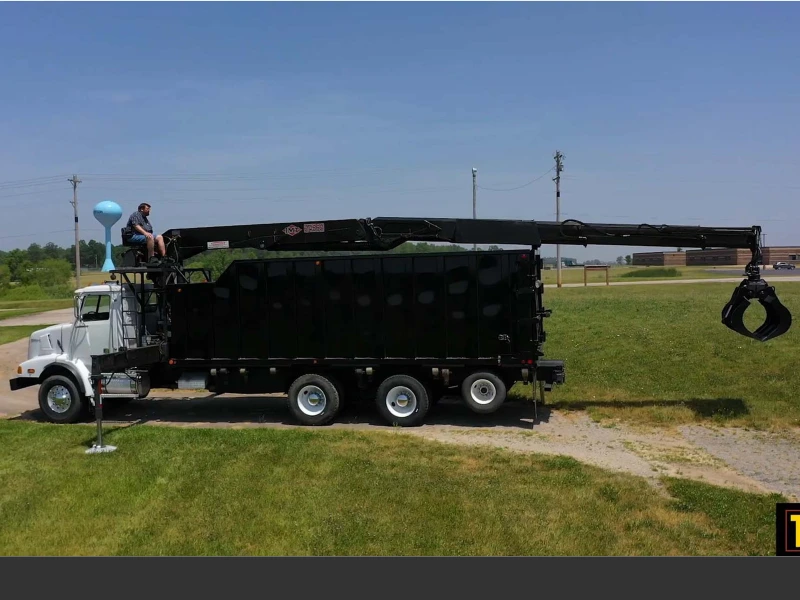

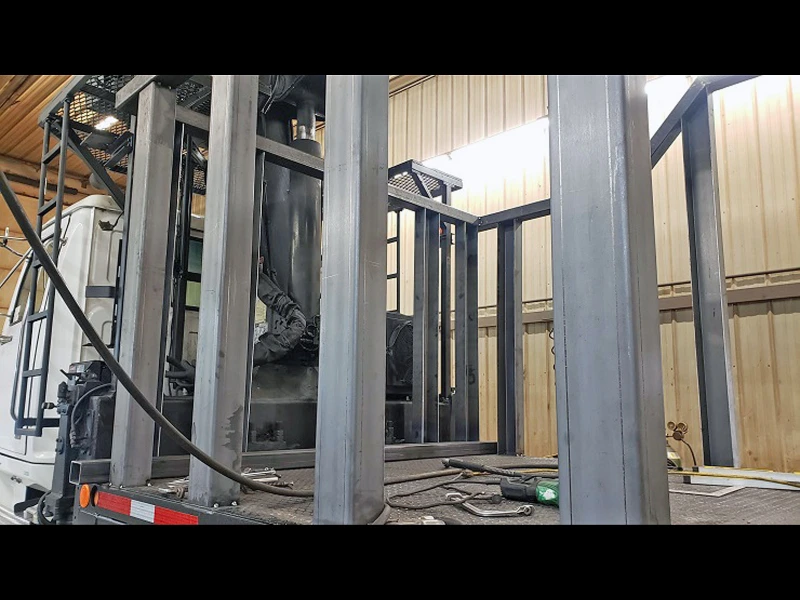

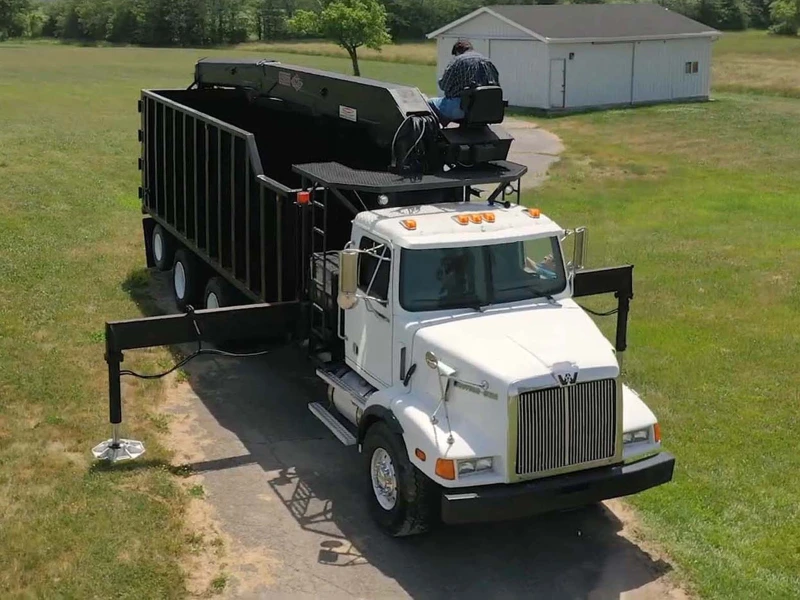

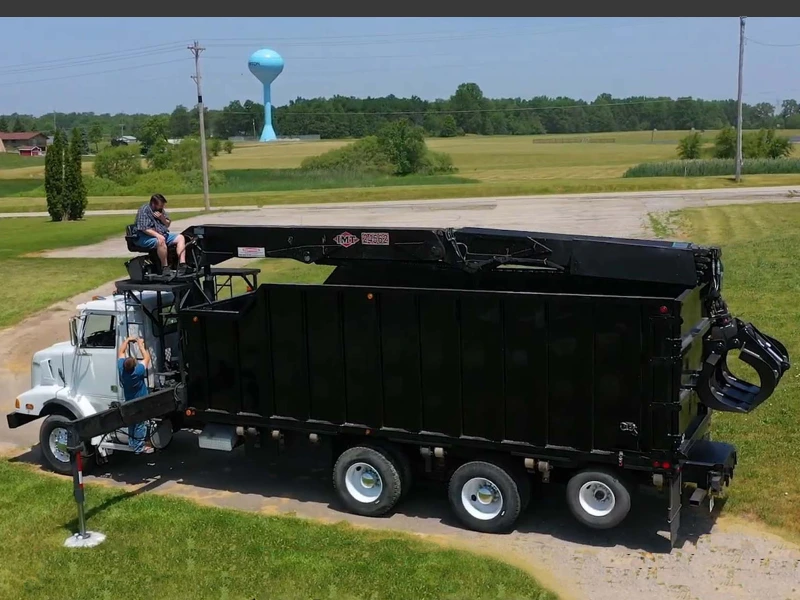

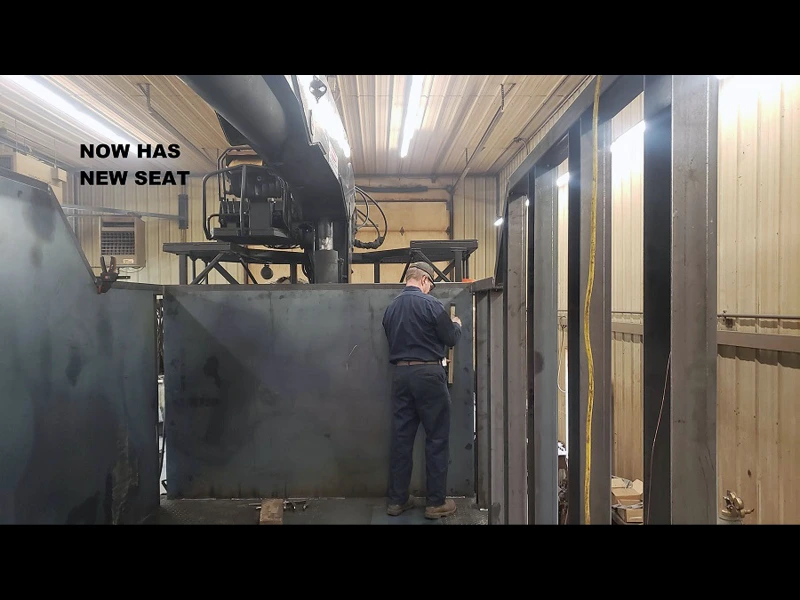

Upper Platform with Top Seat Control Station:
•Pilot-operated joysticks crane controls.
•The top seat and platform allow operators to maneuver materials with excellent operator visibility.\

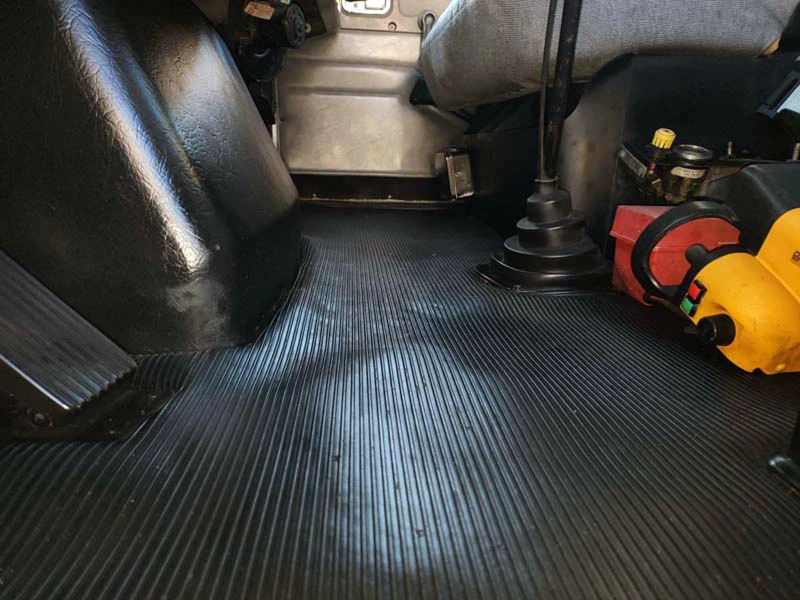

•Hand-held wireless radio remote control.
TRUCK SPECIFICATIONS:
PRE-EMISSION ENGINE Caterpillar C12 445 HP @1600 RPM-1650 lb-ft Torque @1200 RPM- Max 505 HP

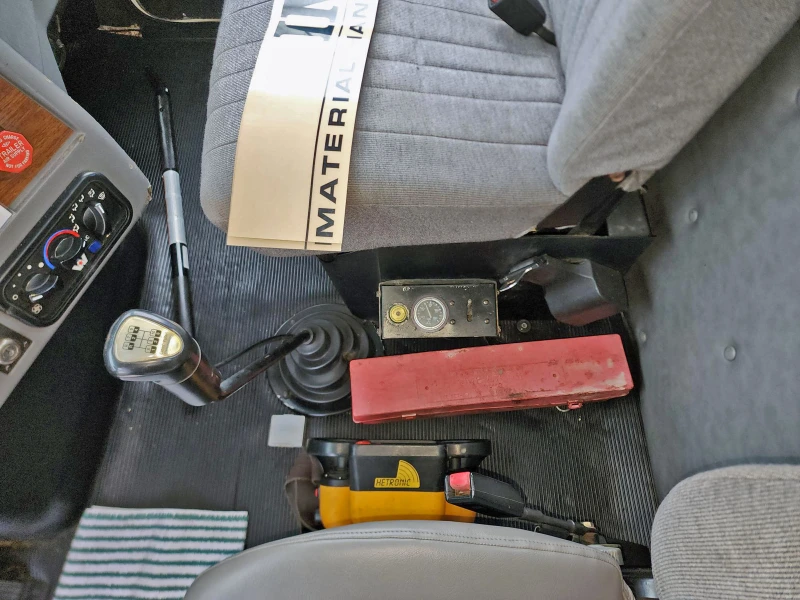

•10-Speed (C Model) Manual Transmission Lo-Hole 1st gear + Overdrive 10th gear
•20,000 lb. Front Axle w/Dual Power Steering Gear Boxes
•46,000 lb. Tandem Rear Drive Axles (4.89 Ratio) "Full Locking" Driver-Controlled Differential Lock (DCDL) provides maximum traction and spinout protection under slippery conditions
•17,640 lb. (capacity limited by tires) Tag Axle Rear Steerable Air Lift Air Ride
•46,000 lb. 800 Series Chalmers Tandem Suspension
•Double C Channel Frame Rails
•REAR GAWR: 63,640 lbs. of three rear axles FRONT GAWR: 20,000 lbs.
•GVWR: 80,000 lbs. (GVWR gross vehicle weight rating)
Specifications
| Body | Class 8 Gvw 33001 - 150000 |
|---|---|
| Cab Type | STANDARD CAB |
| Category | Grapple Truck |
| Make | WESTERN STAR 4900SA TRI-AXLE |
| Odometer | 187998 |
| Passenger Doors | 2 |
| Stock Number | 3-KL05344 |
| Veh Type | Used |
| Vin | 2WLHALAS83KL05344 |
| Year | 2003 |
| Upfit Body Type | GRAPPLE TRUCKS |
|---|---|
| Upfit Make | IMT |
| Upfit Model | 28562 |
| Upfit Description | THE TRUCK SHOWN IN THIS LISTING IS SOLD:
IMPORTANT CRANE SPECS: Model 28562 During crane operation, the RCL Safety System monitors as follows: •The load moment of the crane. •The operation of the crane. •The functional conditions. •Electronic rated capacity limitation (RCL) 5300/5500 blocks load-increasing functions when full capacity is attained. The radio remote control system, together with the RCL 5300 controller, consists of the following components: 1. Remote control box with the radio transmitter. 2. Radio controller. 3. Battery charger. 4. Battery for the remote-control box. 5. Remote control (manual/programming) cable. 6. RCL 5300 controller. 7. External antenna. Upper Platform with Top Seat Control Station: •Pilot-operated joysticks crane controls. •The top seat and platform allow operators to maneuver materials with excellent operator visibility. •The top seat has manual backup controls. •Hand Heald wireless radio remote control. Cylinder Holding Valves: •All cylinders are double acting and equipped with integral mounted load-holding valves (counterbalance valves) on all load-bearing functions. This prevents sudden cylinder collapse in the case of hose or other hydraulic system failure. •The outrigger cylinders have positive, pilot-operated holding valves. Hydraulic Overload System: •The crane is equipped with an RCL (rated capacity limitation) system. •The basic configuration includes the electronic controller, dump valve, pressure transducer, and spool sensor. •The system constantly monitors the crane’s load moment, operation, and function. •In overload situations, the system warns the operator and interrupts the distribution of oil for the crane functions. |
| Axles | 8x4 |
|---|---|
| Front Axle | 20000 |
| Front Tire Size | 425/65R22.5 |
| Number Of Rear Axles | 3 |
| Rear Axles | 60,000 - 80,000 lbs. |
| Rear Tire Size | 11R22.5 |
| Rear Axle | 63640 |
| Suspension | Spring |
| Cylinders | 6 |
|---|---|
| Engine Manufacturer | Caterpillar |
| Engine Model | C12 |
| Engine Size | 12 |
| Fuel Tank Capacity | 100 |
| Fuel Type | Diesel/Biodiesel |
| Transmission Make | Fuller |
|---|
| Gross Vehicle Weight Rating | 80000 |
|---|
| Horse Power | 500-600 |
|---|---|
| Max Torque | 1650 |
| Colour | White |
|---|---|
| Interior Color | Gray / Tan |
Please confirm all features with dealer.
